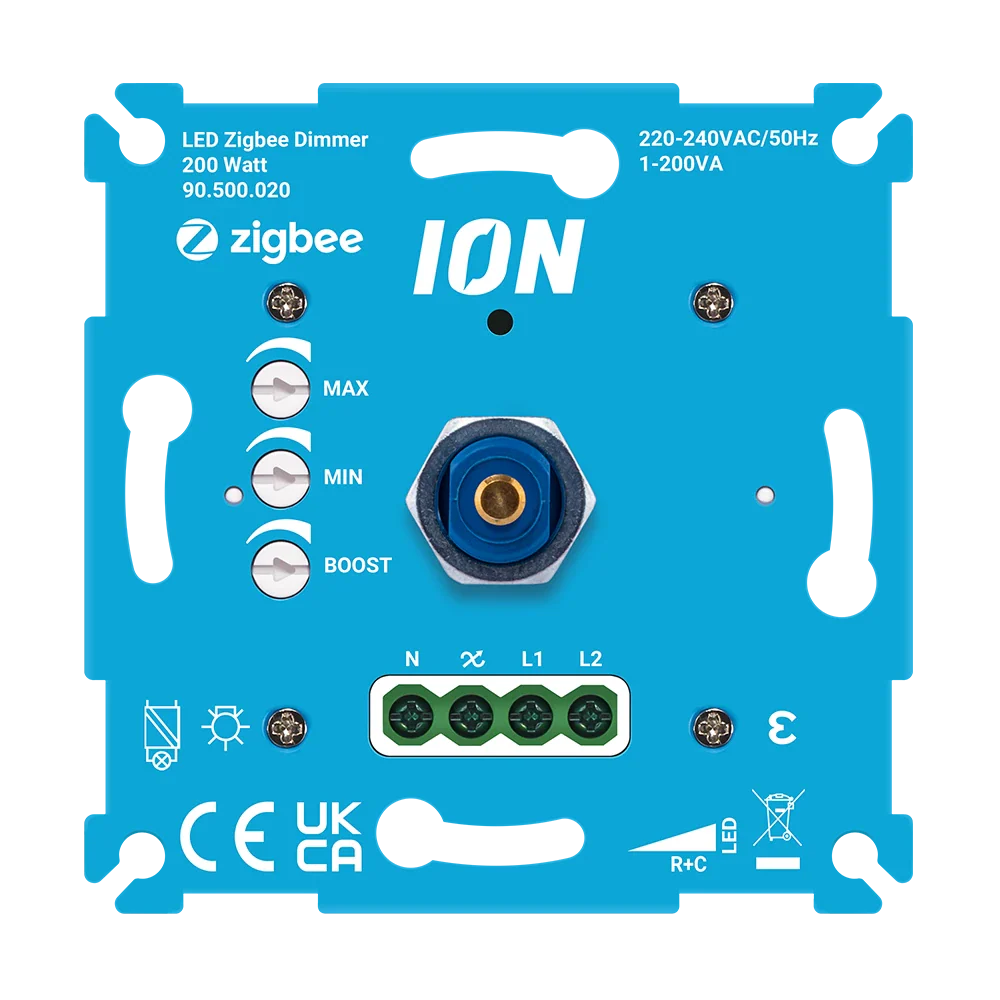

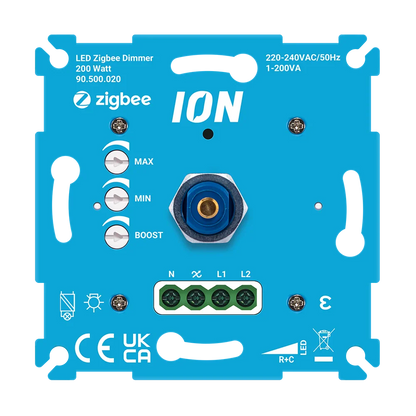

LED Zigbee Dimmer | 0.3-200 Watts | ION INDUSTRIES

This ION Zigbee dimmer is essentially a high-quality LED dimmer, with the added benefit that it can also be controlled wirelessly via Zigbee.
For example, you can connect the dimmer to a Philips Hue bridge and control it via the app or a smart switch.

We regularly use this dimmer in projects where the pendant lamp has an integrated LED module. The lighting can then be switched on or off and dimmed manually with the rotary knob, but it can also be controlled via the app or a smart (hotel) switch.

Thanks to the dimming range of 0.3 to 200 watts, the dimmer is suitable for both low and higher loads and can dim lamps down to a very low light intensity.

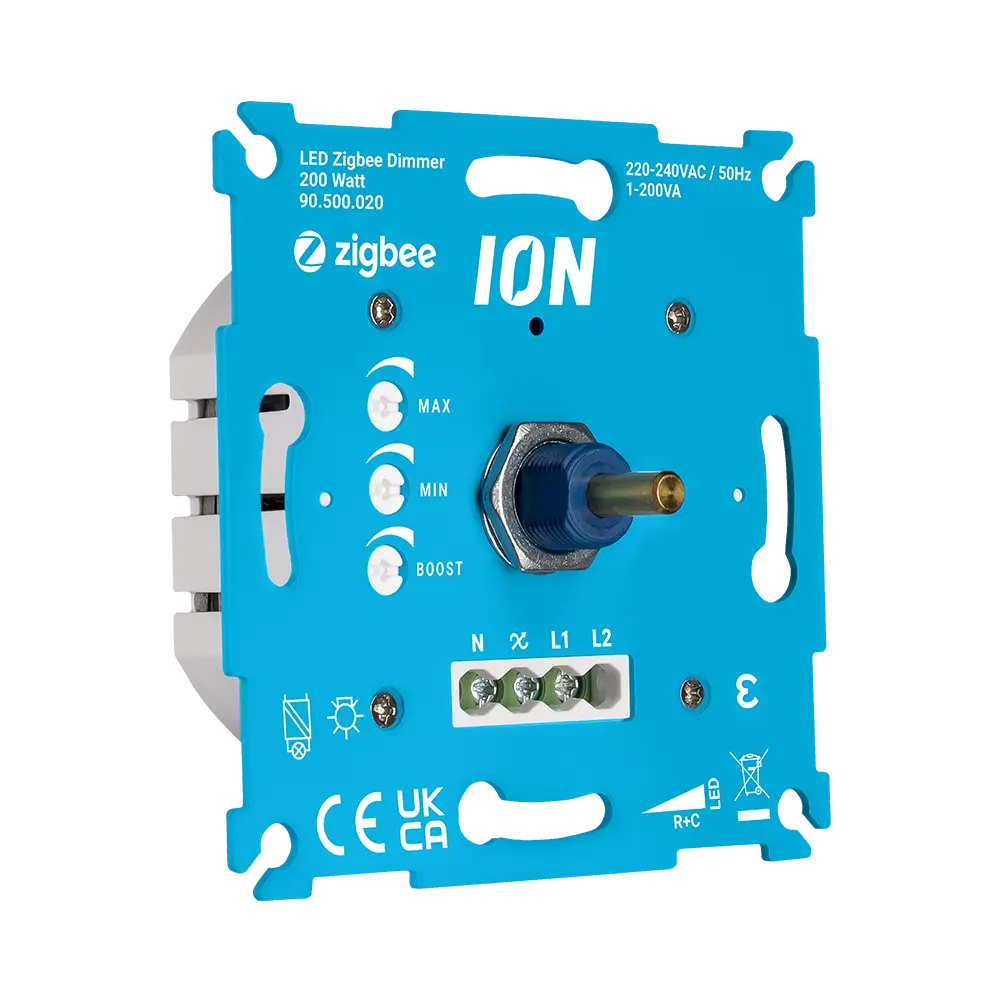

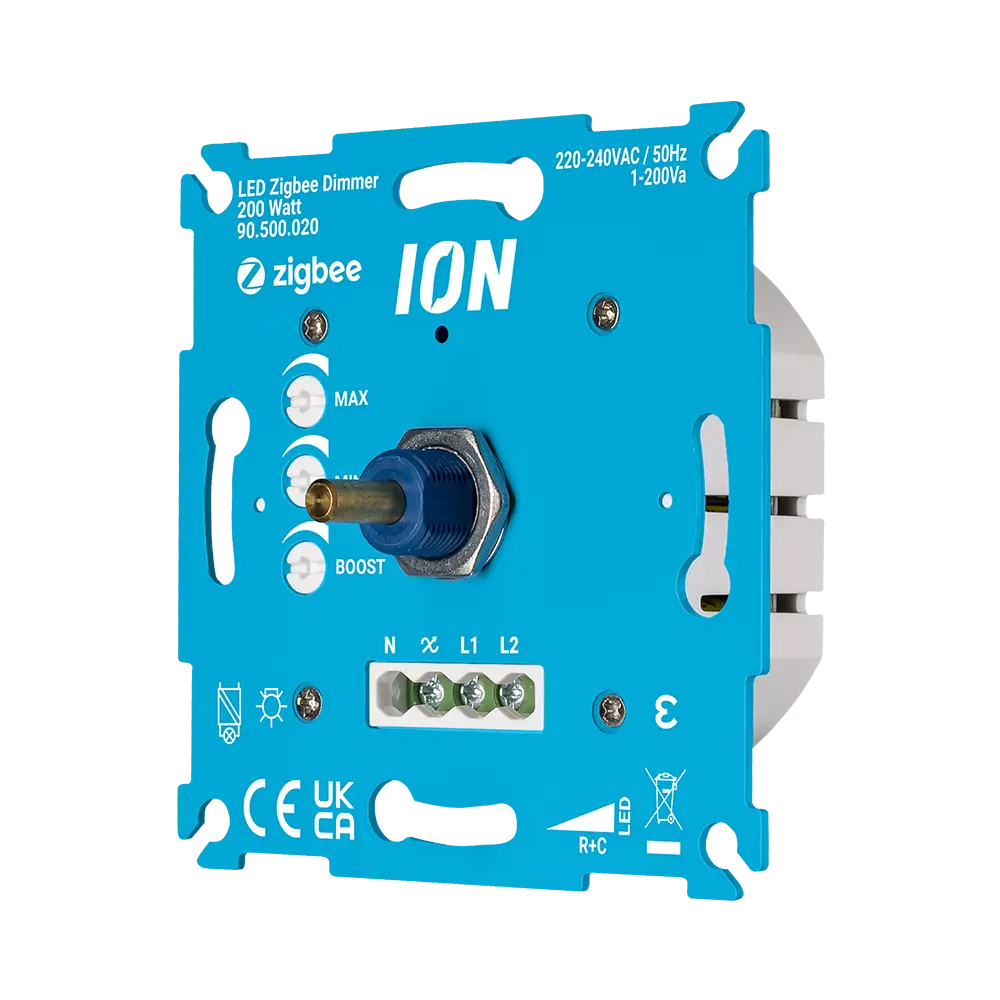

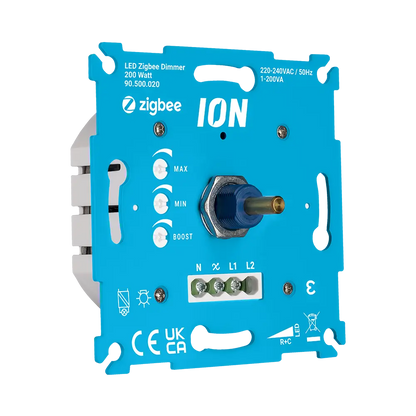

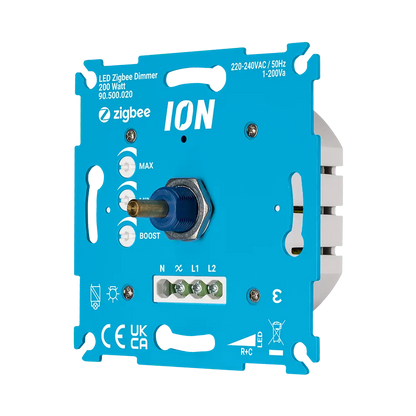

The dimmer fits into a standard flush-mounted box and is compatible with cover material from all common A-brands, such as JUNG, GIRA, Busch-Jaeger and others

Setting options:

• Boost, for anti-popcorn effect*
• Min setting
• Max setting
• Switching groups of lights (from Zigbee controller / Philips Hue Bridge)
• Timer control of lamp(s) (from Zigbee controller / Philips Hue Bridge)

*What is the popcorn effect?
Have you ever turned on multiple lights at once? Chances are you've seen the popcorn effect unfold before your very eyes. When multiple lights are turned on simultaneously, they all initially turn on at high brightness. Only then do they dim. This phenomenon is better known as the popcorn effect.

The LED Zigbee Dimmer can only be used in combination with a Zigbee Compatible gateway such as Philips Hue bridge, Tuya.

• Suitable for 0.3-200 Watt
• Also works without neutral wire
• Suitable for all well-known brands of covering material
• Protects against peak voltage
• Silent dimming
• Push button
• Built-in
• Memory function
• Can be used as a hotel switch in combination with a switch

General information:

This LED dimmer is known for its ability to dim all dimmable LED lighting. It uses phase-cut technology, indicated by the "RC" symbol on the bottom of the dimmer. It also features a memory function: the LED dimmer remembers the last setting used for your lighting.

Suitable for lamps:

• LED lamps 230V (max. 200 Watt)
• Low-voltage lamps with electronic transformer, such as LED lamps with transformer (max. 200 Watt) NOTE: NO MAGNETIC BALLAST
• LED lamps 12V (note: transformer/driver must be dimmable and suitable for LED)

Package contents:

• The LED Zigbee Dimmer 200 Watt
• Manual
• Adapter set for other brands of cover material

Tested lamp brands:

• IKEA
• Philips
• Calex
• Osram
• Various LED Drivers including: Meanwell, Tridonic, Osram LED

Besides these tested brands, we have not yet encountered any LED lamps/LED drivers that we could not dim.
